Product Description

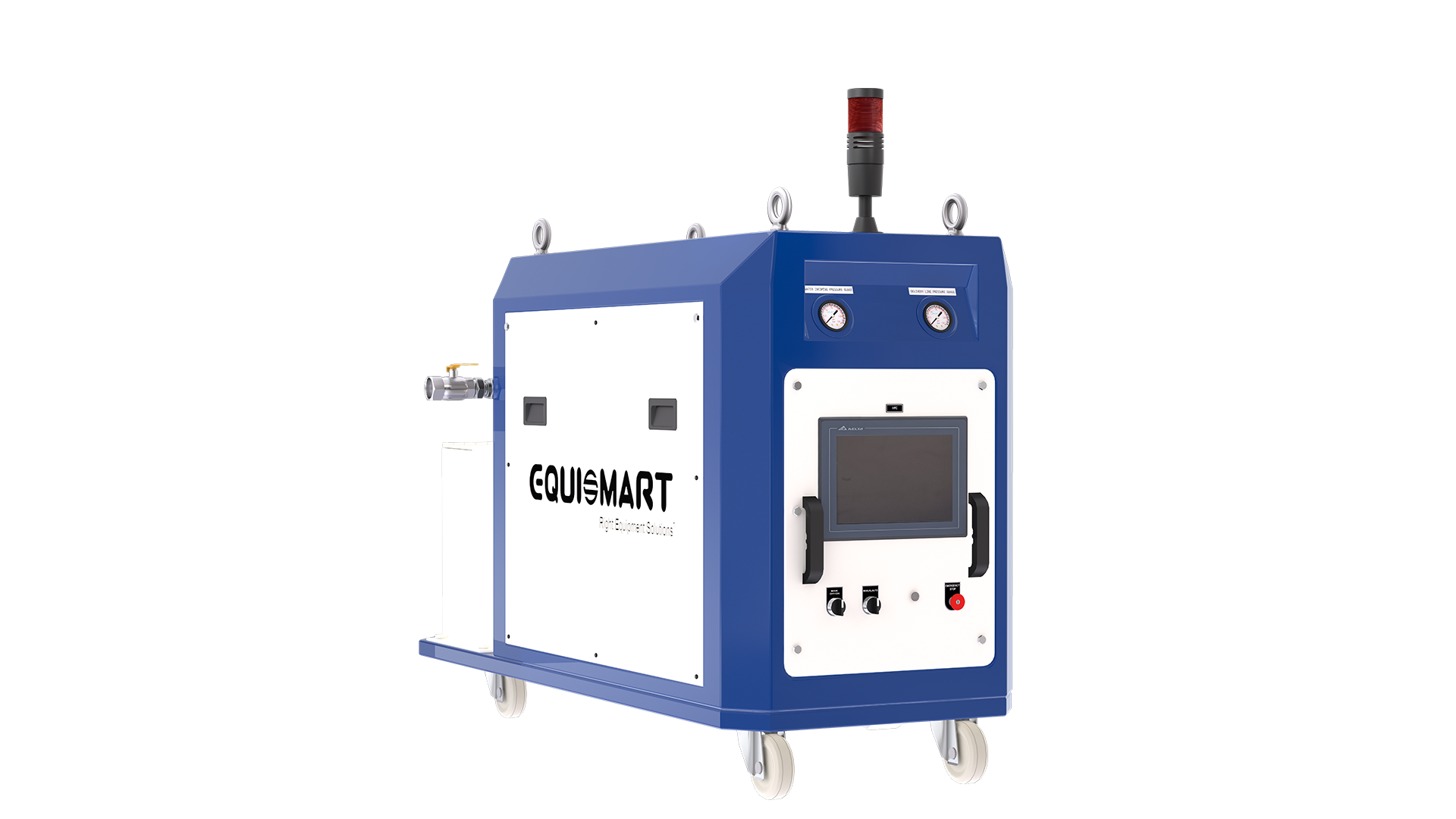

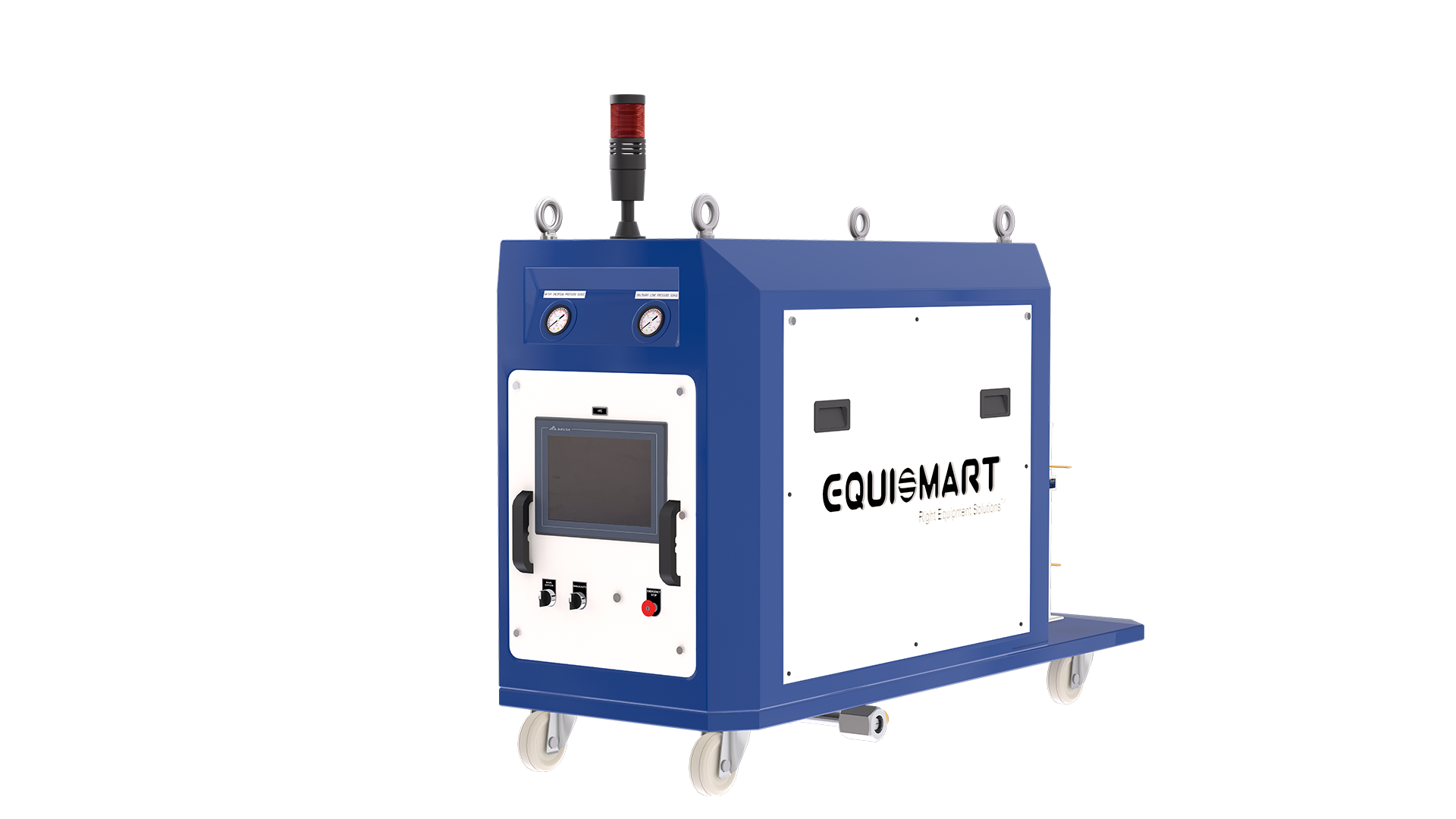

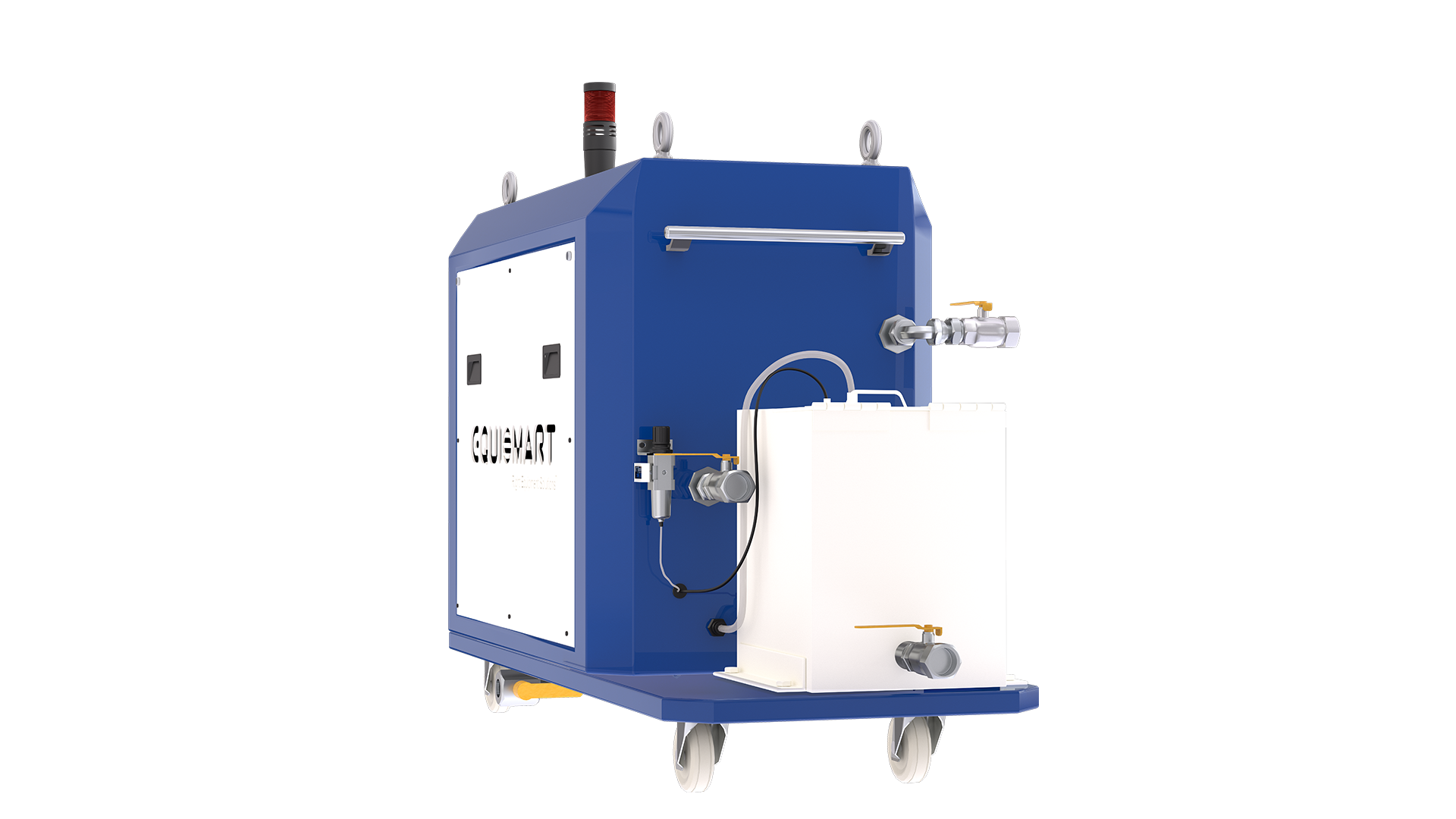

Equismart mixwell die lubricant unit is an automated machine with 30L external tank with user friendly solenoid valves for efficient operation
Key features
- Supplies die lubricant to single or multiple HPDC machines.
- Fully automatic system.
- Optimal performance for die release agent application.
- Portable and compact design with user friendly operation.
- Automatic alarm for low release agent and water pressure.
Product specification
Operating Pressure | 5 – 7 Bar |
Flow Range | 55 LPM |
Dilution Ratio (Dosatron) | 0.2 – 2% |
Storage Capacity | 30 Liters |
Input Water Pressure | 2 – 3 Bar |
Air Pressure (Diaphragm) | 2 – 7 Bar |
Overall Size (L x W x H) | 1172 (L) x 511 (W) x 894 (H) |
Weight of Machine | 150 Kg |
Input Power Supply | 220 VAC |
