Product Description

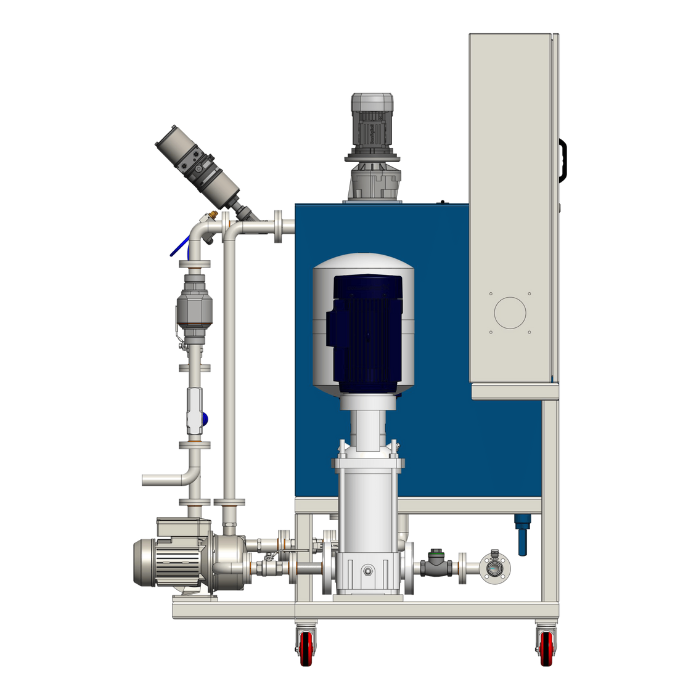

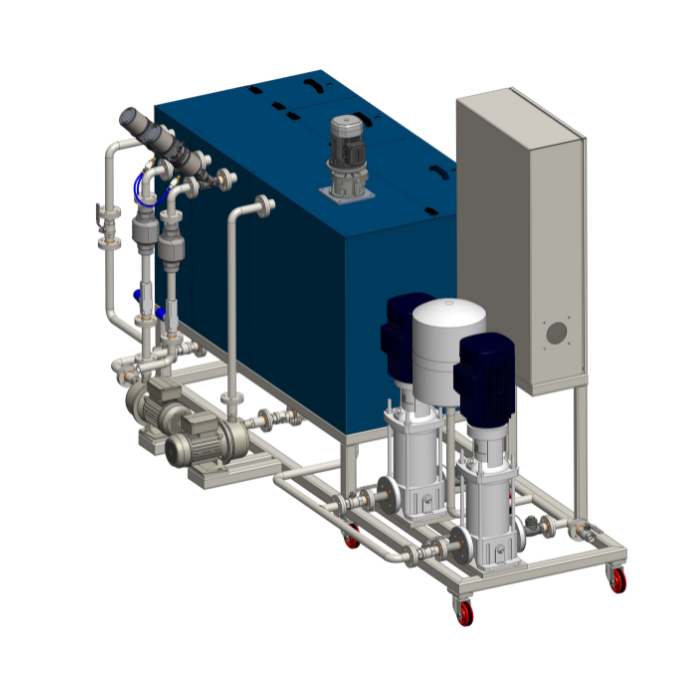

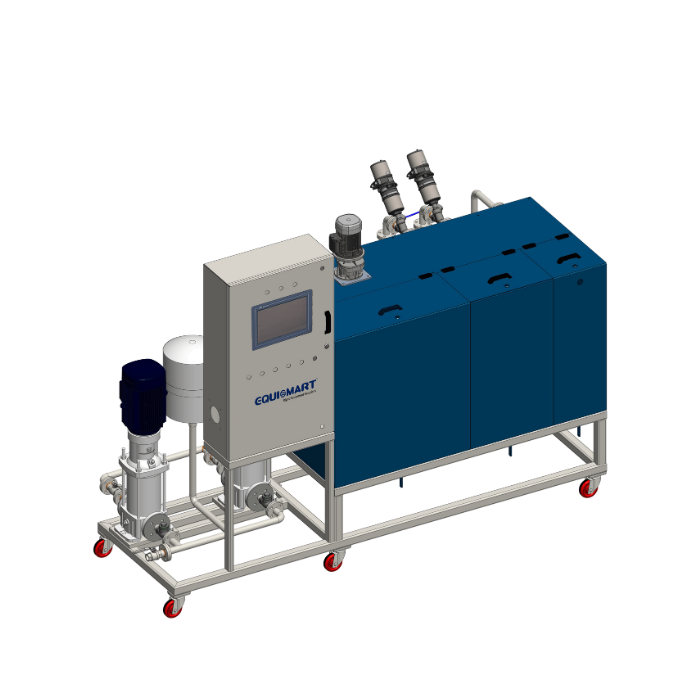

Equismart mixwell die lubricant unit is an advanced automated die lube mixing system designed to supply to a number of high-pressure die casting machines. It ensures precise lubrication and minimizes downtime. ideal for modern plants.
Key features
- Programmable concentration control (e.g., 1:20 -1:200)
- Flow rate regulation, Auto shut-off for overflow or empty tank
- Manual/auto operating modes
- Stainless steel construction
- Compact and mobile design
Product specification
| Operating Pressure | 6 Bar |
| Flow Range | 40 L/M |
| Input Water Pressure | 2–3 Bar |
| Dimensions (L x H x W) | 2504 x 1810 x 1165 mm |
| Weight of Machine | 380 Kg |
| Input Power Supply | 415 V, 3PH |
| Storage Tank | 200 Liters |
| Mixing Tank | 100 Liters |
